After years of resisting the impulse, I finally broke down and got a smartphone, mainly to make traveling a bit easier. Now I can better handle airline and hotel booking and car rental more easily in airports and on the road. One of the reasons I wanted a "smart phone" was so that I wouldn't have to pack my 12 year old DSLR camera and lenses on every trip where I might want photos. I won't go into how I ended up with an iPhone SE, but that is what I have. So now I have to live with the iPhone's quirks. One of the hurdles I had to overcome was getting photos off the phone and onto my Linux Mint v18.2 desktop machine for editing and archiving.
The first thing I tried was connecting the iPhone to my Linux desktop via the supplied Lightning-USB cable. Mint sees and mounts the camera as a USB storage device *but* can't "see" any content (appears empty). Caja recognizes the device as an iPhone and offers to open "Pix" to retrieve media from it. Great, but ... Pix can't see anything either. Bummer. Next, what will my wife's iMac do with a connected iPhone?
On the Mac, the iPhone is recognized but is not treated as a normal storage device, so the file manager again "sees" nothing. So, I tried launching the "Photos" program standard with MacOS and viola!; it can see and import the content. Once in the Photos database, the pics can be exported so they can be moved/copied anywhere needed. But that is sub-optimal since that requires the use of my wife's computer and an import and export operation before the pics can get to the intended destination. On the iPhone I can sync the pics to my iCloud account where I can download the pics via a web browser. But that means uploading and downloading every image (each image is ~1.5MB) and takes time and bandwidth. Again sub-optimal. Just to be complete I tried connecting the iPhone to my Chromebook, expecting the same behavior I had with Mint. But no! It automatically mounted the iPhone and can access the photo directories directly. I already have a userland file system utilizing SFTP (file transfer over SSH) over the home network that allows me to mount my home directory of my desktop machine onto the Chromebook, so I can directly copy the pics from the iPhone to Mint via the Chromebook.
My goal was to not store photos on the iPhone, just keep them there until they can be transferred to my desktop machine for curation. I also wanted to avoid dependence on the Internet for transport and also avoid storing the pics on iCloud. I can send pics via email directly from the iPhone, but that isn't suitable for bulk transfer. So, while it would have been better if Mint could deal with the iPhone directly at least I have an acceptable pathway for transfer. Who would have guessed that the least powerful platform of the three (Chromebook) would be the one most capable of performing this task?
I see evidence that in the past "Pix" was able to transfer media files from the iPhone, but I think later versions of iOS have become more restrictive. As recently as June 2016 it appears that "ifuse" could be used directly to perform this task as described here:
http://www.dedoimedo.com/computers/linux-iphone-6.html
I don't like the fact that Apple conspires to keep users in their walled garden. Only through the use of Apple's "Photos" (or worse, iTunes) program can photos be managed locally and the path to Apple's iCloud is the path of least resistance.
I do hope that there will be an update to Pix or some similar open-source tool that will make life easier but at least I can work with what I have. I did search the web for Ubuntu-iPhone tools and saw the evidence that in the past transfer was possible via Pix and Shotwell. In 2017 I am left with three ways to transfer my pictures:
1. Chromebook via SFTP or sneaker net (SD card or USB stick)
2. MacOS Photos program with SCP or sneaker net
3. iPhone to iCloud and web browser
Update: 9 June 2018
It turns out that I needed Linux kernel 4.15.x in order to import iPhone photos via "Shotwell". I recently got a new System76 "Galago Pro" laptop with Ubuntu 18.04 LTS, which comes with kernel 4.15.x and viola, I can now import those photos without any of the trouble I had previously. When the next LTS of Mint is released (this summer), it too should be able to perform this trick on my desktop as well.
Friday, August 18, 2017
Friday, September 9, 2016
Configuring Wifi on Ubuntu Server 16.04.x LTS
This is the tale of how I set up the wifi interface on Ubuntu server 16.04 LTS as part of a leaf router with a wifi backbone and an ethernet sub-net.
Finding Device Names in Ubuntu 16.04.x
In this latest LTS release, Ubuntu no longer uses the traditional interface device names like "eth0" or "wlan0" for some reason. I'm sure there is some explanation for this, but it does mean that the new names must be discovered. This information can be found by searching the output of the "dmesg" command for the old names:
dmesg | grep eth0
dmesg | grep wlan0
In both cases there will be a line that states (in part) for example: ".. renamed from eth0 ..". Those lines will reveal the current names of the devices. Just to keep things interesting, one system I upgraded in-place from Mint 17.3 to Mint 18 (based on Ubuntu 16.04.x) kept the traditional device names. Go figure.
Configuring Network Interfaces, Old School
Since the server distribution does not use NetworkManager and has no GUI, network interfaces must be configured the old-fashioned way: by creating and editing configuration files.
The first thing is to take care of the /etc/network/interfaces file, which defines the network interfaces. My interfaces file looks like this:
=======================================================================
# This file describes the network interfaces available on your system
# and how to activate them. For more information, see interfaces(5).
source /etc/network/interfaces.d/*
# The loopback network interface
auto lo
iface lo inet loopback
# Ethernet NIC is the "leaf" sub-net, needs static address -jrl
auto enp9s0
iface enp9s0 inet static
address 10.10.1.1
netmask 255.255.255.0
broadcast 10.10.1.255
# Just define the wifi interface, don't bring it up prematurely -jrl
# auto wlp12s0
iface wlp12s0 inet dhcp
=======================================================================
The ethernet interface (enp9s0 formerly known as eth0) will be my "leaf" subnet and needs a static IP address because it will become the default router address for the sub-net clients, as well as the DHCP server for those clients.
The wifi interface (wlp12s0 formerly known as wlan0) is merely defined here, and not initialized. Initializing this interface requires several additional steps. In this example the wifi NIC will be a DHCP client of the main network, but static assignment is another option. This NIC receives a static dhcp address assignment from the DHCP server on the main network (eventually). This is important, since this router does not implement NAT it's address must be known to the default router on the main network as the gateway to the leaf subnet. Notice in particular that the line "auto wlp12s0" is commented out, this is because otherwise the system boot sequence will "block" for 5 min. and 10 sec. while it tries (and fails) to initialize the wifi interface. The "auto" line doesn't have to be there, I left it commented as a reminder.
The next step is to prepare what is needed to configure and initialize the wifi interface. This will require the generation of a configuration file for the "wpasupplicant" utility that will be used to establish an association between the local wifi NIC and the wifi access point on the main network. The first step is to generate the skeleton of wpasupplicant configuration file. This is done with the "wpa_passphrase" utility. This utility takes two arguments: the SSID of the network you wish to join, and the WPA passphrase that is needed for that network. In this example, the SSID is "CoreNet" and the WPA passphrase is "SuperSecretPassword":
wpa_passphrase CoreNet SuperSecretPassword >/etc/wpa_supplicant/wpa_supplicant.conf
The command line above is performed as root or with sudo. After the file is created, restrict the permissions, you don't want the passphrase (or the generated key) to be world readable. When first generated, the skeleton file looks like this:
network={
ssid="CoreNet"
#psk="SuperSecretPassword"
psk=e098eb13f5467b23b186f013a211f6399aebc6e462758898d71d23e0949cf370
}
I added a couple of directives and took out the clear-text of the key so the final file looks like this:
network={
ssid="CoreNet"
scan_ssid=1
key_mgmt=WPA-PSK
psk=e098eb13f5467b23b186f013a211f6399aebc6e462758898d71d23e0949cf370
}
Once this file is finalized, we are ready to begin initializing the NIC. First step, bring the interface "up"
ifconfig wlp12s0 up
Next we invoke wpasupplicant with the configuration file we generated:
wpa_supplicant -Dwext -i wlp12s0 -c /etc/wpa_supplicant/wpa_supplicant.conf -B
We are almost there. At this point the interface is associated with the access point for "CoreNet", but we have no IP address. We obtain our IP parameters from the DHCP server on the main network through the use of the "dhclient" utility:
dhclient wlp12s0
Now we should be in business.
Once the "interfaces" and "wpa_supplicant.conf" files are properly set up, we can automate the initialization at boot time by placing the needed commands in the /etc/rc.local file, which on my system looks like this:
=======================================================================
#!/bin/sh -e
#
# rc.local
#
# This script is executed at the end of each multiuser runlevel.
# Make sure that the script will "exit 0" on success or any other
# value on error.
#
# In order to enable or disable this script just change the execution
# bits.
#
# By default this script does nothing.
#
# wait until things settle down -jrl
sleep 10
# initialize wifi interface the hard way -jrl
#
ifconfig wlp12s0 up
wpa_supplicant -Dwext -i wlp12s0 -c /etc/wpa_supplicant/wpa_supplicant.conf -B
dhclient wlp12s0
exit 0
=======================================================================
There may be slicker ways of bringing up a WPA protected wifi interface on Ubuntu server, but this worked for me.
The most useful documentation I found were the manual pages for "wpa_passphrase", "wpa_supplicant.conf" and "wpa_supplicant". Here are some online links for those pages:
http://linux.die.net/man/8/wpa_passphrase
http://linux.die.net/man/5/wpa_supplicant.conf
http://linux.die.net/man/8/wpa_supplicant
Finding Device Names in Ubuntu 16.04.x
In this latest LTS release, Ubuntu no longer uses the traditional interface device names like "eth0" or "wlan0" for some reason. I'm sure there is some explanation for this, but it does mean that the new names must be discovered. This information can be found by searching the output of the "dmesg" command for the old names:
dmesg | grep wlan0
In both cases there will be a line that states (in part) for example: ".. renamed from eth0 ..". Those lines will reveal the current names of the devices. Just to keep things interesting, one system I upgraded in-place from Mint 17.3 to Mint 18 (based on Ubuntu 16.04.x) kept the traditional device names. Go figure.
Configuring Network Interfaces, Old School
The first thing is to take care of the /etc/network/interfaces file, which defines the network interfaces. My interfaces file looks like this:
=======================================================================
# This file describes the network interfaces available on your system
# and how to activate them. For more information, see interfaces(5).
source /etc/network/interfaces.d/*
# The loopback network interface
auto lo
iface lo inet loopback
# Ethernet NIC is the "leaf" sub-net, needs static address -jrl
auto enp9s0
iface enp9s0 inet static
address 10.10.1.1
netmask 255.255.255.0
broadcast 10.10.1.255
# Just define the wifi interface, don't bring it up prematurely -jrl
# auto wlp12s0
iface wlp12s0 inet dhcp
=======================================================================
The ethernet interface (enp9s0 formerly known as eth0) will be my "leaf" subnet and needs a static IP address because it will become the default router address for the sub-net clients, as well as the DHCP server for those clients.
The wifi interface (wlp12s0 formerly known as wlan0) is merely defined here, and not initialized. Initializing this interface requires several additional steps. In this example the wifi NIC will be a DHCP client of the main network, but static assignment is another option. This NIC receives a static dhcp address assignment from the DHCP server on the main network (eventually). This is important, since this router does not implement NAT it's address must be known to the default router on the main network as the gateway to the leaf subnet. Notice in particular that the line "auto wlp12s0" is commented out, this is because otherwise the system boot sequence will "block" for 5 min. and 10 sec. while it tries (and fails) to initialize the wifi interface. The "auto" line doesn't have to be there, I left it commented as a reminder.
The next step is to prepare what is needed to configure and initialize the wifi interface. This will require the generation of a configuration file for the "wpasupplicant" utility that will be used to establish an association between the local wifi NIC and the wifi access point on the main network. The first step is to generate the skeleton of wpasupplicant configuration file. This is done with the "wpa_passphrase" utility. This utility takes two arguments: the SSID of the network you wish to join, and the WPA passphrase that is needed for that network. In this example, the SSID is "CoreNet" and the WPA passphrase is "SuperSecretPassword":
wpa_passphrase CoreNet SuperSecretPassword >/etc/wpa_supplicant/wpa_supplicant.conf
The command line above is performed as root or with sudo. After the file is created, restrict the permissions, you don't want the passphrase (or the generated key) to be world readable. When first generated, the skeleton file looks like this:
network={
ssid="CoreNet"
#psk="SuperSecretPassword"
psk=e098eb13f5467b23b186f013a211f6399aebc6e462758898d71d23e0949cf370
}
I added a couple of directives and took out the clear-text of the key so the final file looks like this:
network={
ssid="CoreNet"
scan_ssid=1
key_mgmt=WPA-PSK
psk=e098eb13f5467b23b186f013a211f6399aebc6e462758898d71d23e0949cf370
}
Once this file is finalized, we are ready to begin initializing the NIC. First step, bring the interface "up"
ifconfig wlp12s0 up
Next we invoke wpasupplicant with the configuration file we generated:
wpa_supplicant -Dwext -i wlp12s0 -c /etc/wpa_supplicant/wpa_supplicant.conf -B
We are almost there. At this point the interface is associated with the access point for "CoreNet", but we have no IP address. We obtain our IP parameters from the DHCP server on the main network through the use of the "dhclient" utility:
dhclient wlp12s0
Now we should be in business.
Once the "interfaces" and "wpa_supplicant.conf" files are properly set up, we can automate the initialization at boot time by placing the needed commands in the /etc/rc.local file, which on my system looks like this:
=======================================================================
#!/bin/sh -e
#
# rc.local
#
# This script is executed at the end of each multiuser runlevel.
# Make sure that the script will "exit 0" on success or any other
# value on error.
#
# In order to enable or disable this script just change the execution
# bits.
#
# By default this script does nothing.
#
# wait until things settle down -jrl
sleep 10
# initialize wifi interface the hard way -jrl
#
ifconfig wlp12s0 up
wpa_supplicant -Dwext -i wlp12s0 -c /etc/wpa_supplicant/wpa_supplicant.conf -B
dhclient wlp12s0
exit 0
=======================================================================
There may be slicker ways of bringing up a WPA protected wifi interface on Ubuntu server, but this worked for me.
The most useful documentation I found were the manual pages for "wpa_passphrase", "wpa_supplicant.conf" and "wpa_supplicant". Here are some online links for those pages:
http://linux.die.net/man/8/wpa_passphrase
http://linux.die.net/man/5/wpa_supplicant.conf
http://linux.die.net/man/8/wpa_supplicant
Thursday, August 11, 2016
Secure Video Calling on Linux: Wire
I have used Skype for video calling since before it was bought by Microsoft. At the time it was the most widely used video calling service that had a Linux client. Since that time the Linux client has been neglected: the 32-bit-only Linux client is v4.3.0.37, while the 64-bit Mac client is v7.33.306. The Linux client lacks several key capabilities, such as group video calling. Ironically I like the user interface on Linux better than either the Windows or Mac clients. As I write this Microsoft has announced that they are working on a major upgrade to the Linux client. That client is in Alpha development stage right now and the video calling capability has not yet been added. It looks as if Linux will always be a secondary platform (at best) for any Microsoft development.
So I have been looking into possible alternatives for cross platform video calling. Since I already had a Google account, Google Hangouts is an acceptable alternative and in some ways better than Skype and allows group video calls. Hangouts does not have a native client for desktop systems, it is web based and will run on anything that can run Google Chrome (or other modern browsers). There are native clients for iOS and Android. The wide adoption of Hangouts is probably second only to Skype. Most of the people that I video call already have GMail accounts, so that removes one barrier: no new account ID an password to keep track of.
One aspect of video calling that is important to me is privacy. In this regard Skype is a loser, as demonstrated in this Ars Technica story.
Hangouts is probably better, but I really don't know how far to trust Google. So far the benefits outweigh the risks, but I would prefer a system that is more secure. This led me to investigate Wire.com.
Wire.com was started by some of the founders of the original Skype project, before it was sold ultimately to Microsoft. It's primary goals were to establish secure communications: instant messaging, audio and video calling, and file transfer. Wire is cross-platform, it runs natively on Windows, Mac, iOS, and Android plus it has a web-based client that runs on modern browsers including those on Linux. Strong, open-source, end-to-end encryption is used with all Wire's protocols. You can read all about it in their "Wired Security Whitepaper".
Oh yeah, another important feature of Wire is that their servers are hosted in Switzerland, where the laws favor the protection of privacy. They take pains in their operation to preserve your privacy, spelled out in their "Wire Privacy Whitepaper".
While the Wire web client's navigation is not what I could wish, I was able to get everything to work without too much trouble. One thing that is missing from Wire that both Skype and Hangouts have is a "presence" indicator for your contacts. You can't tell when any of your contacts are actually on-line. I suspect that has something to do with maintaining privacy, but it means that you may have to arrange a time in which you and your contacts will be on-line and ready to receive calls. Or you can just try ringing them in Wire; like what we used to do when the best form of communication was a telephone call. I have yet to try out group calling, but that is something supported with Wire.
So now I have two useful, up-to-date, alternatives to Skype: Google Hangouts and Wire. Since both have web clients, I can even use them on my Chromebook as well as my Linux Mint desktop. Skype has never been available to Chromebook users, though their Linux client, once fully operational, might allow them to incorporate Linux support into their web service, allowing the Linux-based ChromeOS to finally use Skype (fingers crossed, but I'm not holding my breath).
Now to convince my Skype correspondents to use Wire or Hangouts, or both.
Update (12 Oct. 2016)
Wire.com has just released a beta version of a Linux desktop client app. On Mint it is installed from a .deb file and works pretty well. One quirk: it identifies itself as "Wire for Windows", but it is identified also as running on a Linux desktop. The version number is "newer" than the Mac desktop client (v2.11.2661 vs. v2.10.2652).
So I have been looking into possible alternatives for cross platform video calling. Since I already had a Google account, Google Hangouts is an acceptable alternative and in some ways better than Skype and allows group video calls. Hangouts does not have a native client for desktop systems, it is web based and will run on anything that can run Google Chrome (or other modern browsers). There are native clients for iOS and Android. The wide adoption of Hangouts is probably second only to Skype. Most of the people that I video call already have GMail accounts, so that removes one barrier: no new account ID an password to keep track of.
One aspect of video calling that is important to me is privacy. In this regard Skype is a loser, as demonstrated in this Ars Technica story.
Hangouts is probably better, but I really don't know how far to trust Google. So far the benefits outweigh the risks, but I would prefer a system that is more secure. This led me to investigate Wire.com.
Wire.com was started by some of the founders of the original Skype project, before it was sold ultimately to Microsoft. It's primary goals were to establish secure communications: instant messaging, audio and video calling, and file transfer. Wire is cross-platform, it runs natively on Windows, Mac, iOS, and Android plus it has a web-based client that runs on modern browsers including those on Linux. Strong, open-source, end-to-end encryption is used with all Wire's protocols. You can read all about it in their "Wired Security Whitepaper".
Oh yeah, another important feature of Wire is that their servers are hosted in Switzerland, where the laws favor the protection of privacy. They take pains in their operation to preserve your privacy, spelled out in their "Wire Privacy Whitepaper".
While the Wire web client's navigation is not what I could wish, I was able to get everything to work without too much trouble. One thing that is missing from Wire that both Skype and Hangouts have is a "presence" indicator for your contacts. You can't tell when any of your contacts are actually on-line. I suspect that has something to do with maintaining privacy, but it means that you may have to arrange a time in which you and your contacts will be on-line and ready to receive calls. Or you can just try ringing them in Wire; like what we used to do when the best form of communication was a telephone call. I have yet to try out group calling, but that is something supported with Wire.
So now I have two useful, up-to-date, alternatives to Skype: Google Hangouts and Wire. Since both have web clients, I can even use them on my Chromebook as well as my Linux Mint desktop. Skype has never been available to Chromebook users, though their Linux client, once fully operational, might allow them to incorporate Linux support into their web service, allowing the Linux-based ChromeOS to finally use Skype (fingers crossed, but I'm not holding my breath).
Now to convince my Skype correspondents to use Wire or Hangouts, or both.
Update (12 Oct. 2016)
Wire.com has just released a beta version of a Linux desktop client app. On Mint it is installed from a .deb file and works pretty well. One quirk: it identifies itself as "Wire for Windows", but it is identified also as running on a Linux desktop. The version number is "newer" than the Mac desktop client (v2.11.2661 vs. v2.10.2652).
Tuesday, February 2, 2016
Dual-Stack OSPF Routing with Quagga
In order to better learn about IPv6 I wanted to set up dual-stack routing on a virtual network. I chose to implement Quagga with OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing. I did this primarily because the price was right (free) and it could be implemented on a regular Ubuntu server that could also be used for other network support protocols (DHCP, DNS, multicast routing etc.). As usual everything here was implemented using VirutalBox on a Linux Mint host. What follows are examples of how to set up Quagga for dual-stack routing.
I chose OSPF because it was a robust, modern Internal Gateway Protocol (IGP) that was relatively easy to set up. I make no claim that the example presented here is perfect or even optimal, I only claim that I tried to keep it simple and that it works for me. I'm writing this for two reasons: to preserve what I have learned (my memory isn't what it used to be) and because a concrete example would have been helpful while I was learning this, so I thought I would supply one for those learning this stuff themselves.

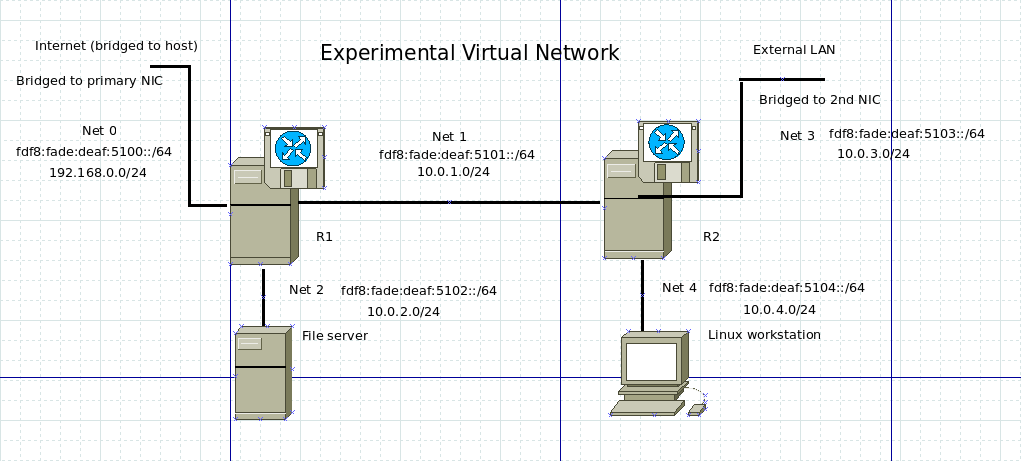

In order to better follow this exercise, below is a diagram of the virtual network used. Note: the IPv6 prefixes are not my actual prefixes (I'd rather not share those publicly) but dummy addresses utilizing IPv6 "Unique Local IPv6 Unicast Addresses" (RFC 4193). Such addresses can't actually be routed over the Internet. My real IPv6 addresses route just fine.
The three hosts that are the focus of this discussion:
It's important to know the static IP addresses for these hosts:
All addressing and routing on "Net 0" on the diagram are statically assigned (no DHCP or OSPF routing). The pfSense router (gator) had static routes for Nets 1 - 3 added (for both protocols) and in addition new firewall rules added to allow hosts on the new networks to access gator and pass Internet traffic as well as local traffic on Net 0.
After installing "route1" and "route66" from ISO images files and updating them static addresses were assigned to all interfaces and packet forwarding was enabled through /etc/sysctl.conf, setting the following:
In the /etc/quagga directory on each router there are 5 text files. For the examples presented here only 4 of them need to be altered or created. You can leave debian.conf untouched it just tells the quagga processes where to run their terminal processes (more on this later).
The zebra.conf file is the one that requires the most information. Here is the sample zebra.conf file for route1
The IPv4 information should be familiar to anyone setting up Linux on a network. Some of the IPv6 addresses used here are all "Link-local" addresses for the interface in question, which can be discovered by using "ifconfig". IPv6 link-local addresses begin with "fe80". Routing information is passed from router to router using the link-local addresses in OSPFv3.
Near the bottom of each interface definition there are 4 IPv6-related directives that could use some explanation.
Unlike DHCPv4, DHCPv6 does not "handle" routing information. That function is left to the router advertisement daemon that is part of an IPv6 router (in this case quagga). The IPv6 protocol has a powerful Stateless Autoconfiguration (SLAAC) capability that does not rely on DHCP for addressing. Address assignment and routing information are configured automatically. What does not get assigned automatically are: addresses of the DNS servers, the host's domain name, and alternate search domains etc. As set up in these examples, each workstation will end up with one IPv4 address and four IPv6 addresses:
DHCPv6 is not required for automatic IPv6 address assignment, as long as the host being configured "knows" it's own domain and the addresses of it's DNS servers (usually by static assignment). It is also possible to distribute only that information (domain name and DNS server addresses) using DHCPv6 and leave the automatic addressing to SLAAC with information supplied by the router advertisements. The "ipv6 nd other-config-flag" directive is there for exactly this sort of setup.

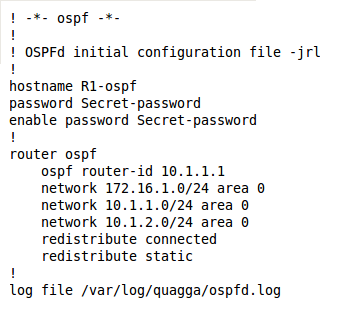

To continue with the configuration of route1, let's look at the /etc/quagga/ospfd.conf file:
This is pretty simple it just places the interfaces (represented by their IPv4 addresses) into the same OSPF routing area, then redistributes any learned routes and any statically configured routes into that area. This is all that is needed to configure the OSPFv2 daemon (IPv4 routing daemon) in quagga.
Now let's look at the OSPFv3 (OSPF for IPv6) routing configuration for route1 contained in the /etc/quagga/ospf6d.conf file:
This accomplishes the same thing for IPv6 as ospfd.conf did for IPv4. This time the interfaces are designated explicitly by their kernel names (instead of indirectly as in ospfd.conf). My guess is that the OSPFv3 was developed later and perhaps by another developer who "did it his way". I find this way "cleaner".
The same configuration files need to be created for route66 and they look very much the same as the OSPF configuration for route1:
The zebra.conf file is unique for route66, since it reflects the actual hardware in use, with unique hardware and IP addresses:
Finally there are two files that are the same on both route1 and route66 the /etc/quagga/daemons and /etc/quagga/debian.conf files:
The "daemons" file determines which daemons within the quagga suite should actually run and the debian.conf file describes how and where the various protocol daemons should listen for terminal connections. Each of the protocols in use (ospfd and ospf6d as well as zebra in our case) has a command-line interface accessible via telnet. It has some similarities to the command interface on cisco routers. Each of the three daemons runs on a different port on the localhost interface of each router:
I chose OSPF because it was a robust, modern Internal Gateway Protocol (IGP) that was relatively easy to set up. I make no claim that the example presented here is perfect or even optimal, I only claim that I tried to keep it simple and that it works for me. I'm writing this for two reasons: to preserve what I have learned (my memory isn't what it used to be) and because a concrete example would have been helpful while I was learning this, so I thought I would supply one for those learning this stuff themselves.
In order to better follow this exercise, below is a diagram of the virtual network used. Note: the IPv6 prefixes are not my actual prefixes (I'd rather not share those publicly) but dummy addresses utilizing IPv6 "Unique Local IPv6 Unicast Addresses" (RFC 4193). Such addresses can't actually be routed over the Internet. My real IPv6 addresses route just fine.
The three hosts that are the focus of this discussion:
- gator.jrl.home is a pfSense dual-stack router with BIND add-on
- route1.jrl.home is Ubuntu server v14.04.3 with Quagga and DHCP server
- route66.jrl.home is Ubuntu server v14.04.3 with Quagga and DHCP relay
It's important to know the static IP addresses for these hosts:
 |
| Router Addresses |
All addressing and routing on "Net 0" on the diagram are statically assigned (no DHCP or OSPF routing). The pfSense router (gator) had static routes for Nets 1 - 3 added (for both protocols) and in addition new firewall rules added to allow hosts on the new networks to access gator and pass Internet traffic as well as local traffic on Net 0.
After installing "route1" and "route66" from ISO images files and updating them static addresses were assigned to all interfaces and packet forwarding was enabled through /etc/sysctl.conf, setting the following:
- net.ipv4.conf.all.forwarding=1
- net.ipv6.conf.all.forwarding=1
In the /etc/quagga directory on each router there are 5 text files. For the examples presented here only 4 of them need to be altered or created. You can leave debian.conf untouched it just tells the quagga processes where to run their terminal processes (more on this later).
The zebra.conf file is the one that requires the most information. Here is the sample zebra.conf file for route1
 |
| zebra.conf for route1.jrl.home |
The IPv4 information should be familiar to anyone setting up Linux on a network. Some of the IPv6 addresses used here are all "Link-local" addresses for the interface in question, which can be discovered by using "ifconfig". IPv6 link-local addresses begin with "fe80". Routing information is passed from router to router using the link-local addresses in OSPFv3.
Near the bottom of each interface definition there are 4 IPv6-related directives that could use some explanation.
- no ipv6 nd suppress-ra - means do not suppress IPv6 router advertisements
- ipv6 nd managed-config-flag - means that DHCPv6 is in use for addressing
- ipv6 nd other-config-flag - means that DHCPv6 info other than addresses are in use
- ipv6 nd prefix fdf8:fade:deaf:5150::/64 - means advertise this prefix
Unlike DHCPv4, DHCPv6 does not "handle" routing information. That function is left to the router advertisement daemon that is part of an IPv6 router (in this case quagga). The IPv6 protocol has a powerful Stateless Autoconfiguration (SLAAC) capability that does not rely on DHCP for addressing. Address assignment and routing information are configured automatically. What does not get assigned automatically are: addresses of the DNS servers, the host's domain name, and alternate search domains etc. As set up in these examples, each workstation will end up with one IPv4 address and four IPv6 addresses:
- Link-local address derived from the hardware address and assigned by the kernel
- SLAAC address also derived from the hardware address and the prefix from the router
- A privacy address that is dynamic, random and combined with the prefix from the router
- A managed address supplied by the DHCPv6 service
DHCPv6 is not required for automatic IPv6 address assignment, as long as the host being configured "knows" it's own domain and the addresses of it's DNS servers (usually by static assignment). It is also possible to distribute only that information (domain name and DNS server addresses) using DHCPv6 and leave the automatic addressing to SLAAC with information supplied by the router advertisements. The "ipv6 nd other-config-flag" directive is there for exactly this sort of setup.
To continue with the configuration of route1, let's look at the /etc/quagga/ospfd.conf file:
 |
| ospfd.conf for route1.jrl.home |
Now let's look at the OSPFv3 (OSPF for IPv6) routing configuration for route1 contained in the /etc/quagga/ospf6d.conf file:
 |
| ospf6d.conf for route1.jrl.home |
The same configuration files need to be created for route66 and they look very much the same as the OSPF configuration for route1:
 |
| ospfd.conf and ospf6d.conf for route66.jrl.home |
The zebra.conf file is unique for route66, since it reflects the actual hardware in use, with unique hardware and IP addresses:
 |
| zebra.conf file for route66.conf |
Finally there are two files that are the same on both route1 and route66 the /etc/quagga/daemons and /etc/quagga/debian.conf files:
 |
| daemons and debian.conf file for both route1 and route66 |
The "daemons" file determines which daemons within the quagga suite should actually run and the debian.conf file describes how and where the various protocol daemons should listen for terminal connections. Each of the protocols in use (ospfd and ospf6d as well as zebra in our case) has a command-line interface accessible via telnet. It has some similarities to the command interface on cisco routers. Each of the three daemons runs on a different port on the localhost interface of each router:
- telnet localhost 2601 - will get you to the command interface of the zebra daemon
- telnet localhost 2604 - will get you to the command interface of the ospfv2 daemon
- telnet localhost 2606 - will get you to the command interface of the ospfv3 daemon
Those "enable password" statements at the top of the configuation files (zebra.conf, ospfd.conf and ospf6d.conf) set the passwords you will have to supply to actually get to those command interfaces.
Once logged in, typing a question mark will get some help with the commands. Once you have (re-)started the quagga daemons on both routers, you should be in business.
There are resources on the web for learning Quagga. One site is here: http://www.nongnu.org/quagga/docs.html
Thursday, December 3, 2015
Yet Another Active Directory Alternative: the Univention Corporate Server
Previously I have "test-driven" Zentyal, a MS Windows Small Business Server alternative and Active Directory domain controller (http://anorak-tech-notes.blogspot.ca/2015/01/zentyal-and-freeipa-foss-id-management.html).
This post is a brief look at another AD domain controller alternative, the Univention Corporate Server (UCS). In my case it is the free "UCS Core Edition" version 4.1. This is by no means a complete review or evaluation, merely my impressions of the product.
The best news is that UCS provides another free alternative to MS Windows Server and it's licensing expenses. Univention touts it's integration with cloud services and SAML single sign-on features along with Docker support to differentiate their product with others. Those features were irrelevant to my use case, so while those features are not important to me, they might be invaluable to others.
My use case is hypothetical. I evaluate based on how an IT product would fit into a K-12 school network supporting student instruction. The basic need is for secure, distributed, cross-platform, ID management and file service. Beyond that, how easy would it be for novice system administrators to deploy and manage these services. Cost is always a consideration.
As with Zentyal, ClearOS, and SME, UCS can fulfill many roles on the network. In my case only directory services and file service were investigated. The UCS server was installed from the downloaded ISO DVD image under VirtualBox v4.3.34 on a Linux Mint 17 64-bit host. The clients of the UCS server were Linux Mint v17.2 Mate and Linux Mint Debian Edition v2 (LMDE) Mate workstations. The clients were also virtual machines running under VirtualBox. Both Server and clients were on a VirtualBox internal network, connected to the outside world via a virtual pfSense firewall router supporting IPv4 NAT and IPv6 routing.
Installation was pretty straight-forward and worked well. One of the features of UCS not supported by Zentyal was IPv6 support, which I wanted to investigate. During installation I was able to specify an IPv4 static IP address, but not the IPv6 address, which was left to SLAAC.
Because I was interested in UCS's usefulness as an Active Directory alternative my first test was to see if I could join the Mint and LMDE workstations with the UCS server as I would with MS AD or Zentyal. I used "realmd" to successfully join the workstations to the domain, using the same directions I worked out previously here.
None of the problems I had were major, but they were important. First, the web-based administration user interface was non-intuitive. I'm sure the developers loved it but I found it very needlessly different from anything else I've used with a menu. This is especially important for novice sys-admins (like teachers).
One limitation of UCS, shared by Zentyal, was that the DNS server was not suitable for use as the primary for any network beyond the simplest. This limitation means that I could only recommend that the AD domain be run as a sub-domain within an organization; that way the UCS DNS server would only have to deal with the AD domain and all other DNS needs could be met with a more flexible DNS implementation (even the BIND package in pfSense for example). Likewise, the DHCP server supplied with UCS is not very flexible either. Here is a screenshot of the form for configuring DHCP service:
No provision for static assignments, let alone boot information for thin clients. Again I would use another implementation for DHCP service instead of UCS (or Zentyal).
When I went to check out UCS's IPv6 functionality, the first problem was establishing a static IPv6 address and entering it into DNS so that IPv6-only clients could find the server. I like to number my servers with host address portion consisting of sequential small integers (like ::1 for default gateway, ::2 for directory servers, ::3 for file servers etc.) but I ran into a problem; here is a screenshot that illustrates the location of my problem:
Nowhere in the documentation could I find out how to supply an acceptable "Identifier". Instead I merely checked the "Autoconfiguration (SLAAC)" box, then manually entered the AAAA record in the DNS entry for the server. Luckily SLAAC-generated addresses are static (as long as the host remains on the same network). Once the addressing was straightened out, I was able to have services accessible over IPv6 addresses, in contrast to Zentyal which was IPv4 only.
Pros
If I were charged with deploying a free AD alternative, as of this writing I would choose Zentyal over UCS for my use case. I simply couldn't turn a novice over to the UCS user interface, it would be a support nightmare. I hope that UCS improves over time because I feel that IPv6 support will become more important in future. Both UCS and Zentyal are developed in Europe; Zentyal in Spain and UCS in Germany. This can make the translations of documentation more problematic for English speakers, making the user interface intuitive more important than otherwise might be the case. Both UCS and Zentyal are usable and useful as a limited MS AD alternative, my hope is that they become more refined and robust over time.
Links
Univention Corportate Server: https://www.univention.com/products/ucs/
This post is a brief look at another AD domain controller alternative, the Univention Corporate Server (UCS). In my case it is the free "UCS Core Edition" version 4.1. This is by no means a complete review or evaluation, merely my impressions of the product.
The best news is that UCS provides another free alternative to MS Windows Server and it's licensing expenses. Univention touts it's integration with cloud services and SAML single sign-on features along with Docker support to differentiate their product with others. Those features were irrelevant to my use case, so while those features are not important to me, they might be invaluable to others.
My use case is hypothetical. I evaluate based on how an IT product would fit into a K-12 school network supporting student instruction. The basic need is for secure, distributed, cross-platform, ID management and file service. Beyond that, how easy would it be for novice system administrators to deploy and manage these services. Cost is always a consideration.
As with Zentyal, ClearOS, and SME, UCS can fulfill many roles on the network. In my case only directory services and file service were investigated. The UCS server was installed from the downloaded ISO DVD image under VirtualBox v4.3.34 on a Linux Mint 17 64-bit host. The clients of the UCS server were Linux Mint v17.2 Mate and Linux Mint Debian Edition v2 (LMDE) Mate workstations. The clients were also virtual machines running under VirtualBox. Both Server and clients were on a VirtualBox internal network, connected to the outside world via a virtual pfSense firewall router supporting IPv4 NAT and IPv6 routing.
Installation was pretty straight-forward and worked well. One of the features of UCS not supported by Zentyal was IPv6 support, which I wanted to investigate. During installation I was able to specify an IPv4 static IP address, but not the IPv6 address, which was left to SLAAC.
Because I was interested in UCS's usefulness as an Active Directory alternative my first test was to see if I could join the Mint and LMDE workstations with the UCS server as I would with MS AD or Zentyal. I used "realmd" to successfully join the workstations to the domain, using the same directions I worked out previously here.
None of the problems I had were major, but they were important. First, the web-based administration user interface was non-intuitive. I'm sure the developers loved it but I found it very needlessly different from anything else I've used with a menu. This is especially important for novice sys-admins (like teachers).
One limitation of UCS, shared by Zentyal, was that the DNS server was not suitable for use as the primary for any network beyond the simplest. This limitation means that I could only recommend that the AD domain be run as a sub-domain within an organization; that way the UCS DNS server would only have to deal with the AD domain and all other DNS needs could be met with a more flexible DNS implementation (even the BIND package in pfSense for example). Likewise, the DHCP server supplied with UCS is not very flexible either. Here is a screenshot of the form for configuring DHCP service:
No provision for static assignments, let alone boot information for thin clients. Again I would use another implementation for DHCP service instead of UCS (or Zentyal).
When I went to check out UCS's IPv6 functionality, the first problem was establishing a static IPv6 address and entering it into DNS so that IPv6-only clients could find the server. I like to number my servers with host address portion consisting of sequential small integers (like ::1 for default gateway, ::2 for directory servers, ::3 for file servers etc.) but I ran into a problem; here is a screenshot that illustrates the location of my problem:
Nowhere in the documentation could I find out how to supply an acceptable "Identifier". Instead I merely checked the "Autoconfiguration (SLAAC)" box, then manually entered the AAAA record in the DNS entry for the server. Luckily SLAAC-generated addresses are static (as long as the host remains on the same network). Once the addressing was straightened out, I was able to have services accessible over IPv6 addresses, in contrast to Zentyal which was IPv4 only.
Pros
- Easy installation
- IPv6 support
- Web-based management (no Windows tools needed)
- Cloud and SAML support (un-tested)
- Provides an AD alternative (Kerberos, LDAP, AD schema, DNS SRV RRs etc.)
- Linux clients can use "realmd" for joining the AD domain
- Non-intuitive user interface
- Limited DNS and DHCP functionality
- Extensive yet incomplete documentation
If I were charged with deploying a free AD alternative, as of this writing I would choose Zentyal over UCS for my use case. I simply couldn't turn a novice over to the UCS user interface, it would be a support nightmare. I hope that UCS improves over time because I feel that IPv6 support will become more important in future. Both UCS and Zentyal are developed in Europe; Zentyal in Spain and UCS in Germany. This can make the translations of documentation more problematic for English speakers, making the user interface intuitive more important than otherwise might be the case. Both UCS and Zentyal are usable and useful as a limited MS AD alternative, my hope is that they become more refined and robust over time.
Links
Univention Corportate Server: https://www.univention.com/products/ucs/
Sunday, August 23, 2015
Tale of Two Tunnel Brokers: Gogo6 & Hurricane Electric
Late in 2013 I decided it was time I got serious about learning the essentials of IPv6. I had played with the protocol shortly after the turn of the millenium, but at the time it's actual use case was in the future. With the exhaustion of the IPv4 address space, the future has arrived. Let me be clear, since I am now retired and have no responsibility for building or maintaining a University network anymore, I am still "playing", but I am now a bit more systematic about it.
Gogo6/Freenet6
Since my ISP does not support IPv6, the only way I could gain anything resembling a real life experience with the protocol was to use an IPv6 tunnel broker. I initially settled on Gogo6/Freenet6 mainly because the client software was in the Linux Mint repository and it could work with IPv4 NAT-based home networks. I later tried Hurricane Electric as a tunnel broker in conjunction with my home firewall-router, a NetGear running "Toastman Tomato" firmware.
Gogo6/Freenet6 provides IPv6 tunneling services for free. There are two forms of tunnels: anonymous and registered. Anonymous tunnels use a dynamically assigned host address at each connection. Registered users receive a statically assigned IPv6 address registered on their DNS servers (both forward and reverse zones). Registered users can also request a /56 address prefix delegation, which gives you 8-bits of subnet addressing (255 subnets of /64 networks). I wanted to investigate dual-stack routing, so I asked for and received a /56 address prefix delegation.
After registering with Gogo6 and Freenet6, getting the gogoc service took a bit of tweaking. In my /etc/gogoc/gogoc.conf file I had to enter my userid and passwd information, and set the following parameters:
server=montreal.freenet6.net # those in Europe can use amsterdam
always_use_same_server=yes
auth_method=digest-md5 # not the best, but better than nothing
host_type=router # I wanted my sub-nets
prefixlen=56 # can be 128, 64 or 56
if_prefix=eth0 # interface for router advertisements
tunnel_mode=v6anyv4
In the /var/lib/gogoc/tsp-last-server.txt file I pre-loaded the single entry "montreal.freenet6.net", since one weakness of Gogo6/Freenet6 is that while they have several server locations, your registration is only recognized in the one you register for, in my case Montreal.
Once this was done, it worked as advertised and I had the basis for my experimental dual-stack network. Here is a simplified diagram of one of my experimental networks:
I am not using my real IPv6 addresses on the diagram, the ones labeled here are similar to RFC1918 addresses for IPv4. The "File Server" here is a generic stand-in for any of several servers providing various services, such as: XMPP, Active Directory services, NT4 domain services, NFS file server, IPA Directory server, LDAP server etc. R1 and R2 are Linux Mint servers running Quagga, BIND, ISC DHCP and supporting services. All hosts on the net are virtual machines built with VirtualBox running on a Linux Mint v17 host with 3 NICs.
Gogo6/Freenet6 works very well. I don't run IPv6 full time, I turn it on and off with the "service" command as needed. One thing to keep in mind is that IPv6 is tunneled right through my firewall, so I have to make sure that any services are secured. All ssh servers are address restricted via /etc/hosts.allow and password authentication is turned off (authorized keys only) for instance.
Advantages of Gogo6/Freenet6
I was able to run IPv6 from within my NATed home network where I had great flexibility in routing. The delegation of a /56 IPv6 prefix meant that I could create an elaborate dual-stack intranet as an excellent learning platform. The ability to have an anonymous tunnel (for IPv6) can be a plus for some users. I run a second registered host tunnel on my laptop, and since it is a static address with proper DNS entries I can log into my home IPv6 net even with address restrictions.
Problems with Gogo6/Freenet6
Since my home firewall/router doesn't have the "gogoc" client, I can't run Gogo6/Freenet6 on my Netgear/Tomato box.
Twice I have "lost" my /56 prefix assignment and a different one was assigned. There is very little tech support and I never found out exactly why this happens. Both times I had to re-number my networks and update my local DNS records. My tunnel address was never lost, only the /56 prefix.
Just recently the Montreal Gogo6/Freenet6 server went down completely (Amsterdam stayed up) for a period of nearly two weeks. I received no announcement about this but on their community forum I found out that it was being worked on and when it came back up, all was well. Apparently this is a volunteer-run service and while I am thankful for it, I would not trust a production network to this service.
Hurricane Electric
When Gogo6/Freenet6 was "down" for two weeks and I was unsure if or when it would be back up, I looked into Hurricane Electric briefly. I was able to get my Netgear/Tomato firewall router working with an IPv6 tunnel once I registered at HE. I received a /64 delegation and an optional /48 prefix. I had planned to re-number my virtual network (again) and use HE as my tunnel broker.
First the good news. I was able to get the tunnel and the /64 prefix running on my home network. The bad news is that the Netgear/Tomato router has no provision for static IPv6 routes (other than default) nor any IPv6 routing services (OSPFv3 for instance), so it meant that I couldn't run my virtual IPv6 intranet with the delegated /48 prefix, or rather I could, but they couldn't be connected to the outside world. This is not a problem with HE, but a limitation of Tomato.
The further bad news (for me) is that I don't have a statically assigned public IPv4 address, so once I had to power-cycle my firewall/router (we have a lot of power outages here in America's paradise), I lost my tunnel endpoint address and HE tunnel stopped working. Manually editing my tunnel settings at HE should have fixed it, but I had trouble there too. I might have been able to work through these problems, but since I would still not be able to run my virtual net the way I wanted, I didn't try very hard. About that time Gogo6/Freenet6 came back on-line and I switched back.
Advantages of Hurricane Electric
The HE 6-in-4 tunnel is more generic and widely supported in commodity home firewalls than gogoc. If one had a statically assigned public IPv4 address from one's ISP, I think HE would be a better choice for most home users looking for solid IPv6 connectivity than Gogo6/Freenet6. Most home users wouldn't need elaborate routing, the /64 prefix would cover even the largest single home LAN.
Disadvantages of Hurricane Electric
HE really works best if you have a static public IPv4 endpoint for your tunnel. I didn't use HE long enough really wring it out, and the problems I had were mostly due to my own environment (bad local power, limited router functionality) rather than with HE.
Conclusions
For my purposes (self education and playing with technology) Gogo6/Freenet6 has worked pretty well, even with prolonged outages and changing prefix delegations. It is likely the only tunnel broker I can use without upgrading some of my home network equipment (pfSense router for instance) and paying my ISP for a static public IPv4 address. If only my ISP would just upgrade to support native IPv6 ...
With a better firewall/router and a static tunnel endpoint, HE would be a good choice and I think it may be more reliable and better supported than Gogo6/Freenet6. HE would be my first choice for a production network if those two criteria were met and I still needed the services of a tunnel broker.
Update 14 April 2016
It appears that Gogo6/Freenet6 is closing down. I received the following notice:
"Hello. After 6 years of IPv6 goodness, gogoNET is closing down. With over 100,000 registered members I’d like to think that we made a difference in helping the world transition to IPv6.
The Freenet6 service will also stop accepting new users and it is unknown how long it will continue to operate for existing users. If you rely on one of our free tunnels or address blocks you should start looking for alternatives.
The company gogo6 stopped operating almost two years ago. The gogoNET community and FN6 tunnel broker service lost money for years before that but I kept it running because it helped people, not only to get IPv6 but for some people it provided access to the uncensored Internet from countries that try to restrict it.
gogoNET will go dark on April 23, 2016. How long Freenet6 will continue to operate is uncertain since its IPv6 block from ARIN has not been renewed.
With the transition to the Internet of IPv6 well on its way I have shifted my focus to help with the transition to the Internet of Things with my new site, http://www.iot-inc.com. Hope to see you there, Bruce"
Links
Gogo6/Freenet6 http://www.gogo6.com/
Hurricane Electric http://he.net/
Gogo6/Freenet6
Since my ISP does not support IPv6, the only way I could gain anything resembling a real life experience with the protocol was to use an IPv6 tunnel broker. I initially settled on Gogo6/Freenet6 mainly because the client software was in the Linux Mint repository and it could work with IPv4 NAT-based home networks. I later tried Hurricane Electric as a tunnel broker in conjunction with my home firewall-router, a NetGear running "Toastman Tomato" firmware.
Gogo6/Freenet6 provides IPv6 tunneling services for free. There are two forms of tunnels: anonymous and registered. Anonymous tunnels use a dynamically assigned host address at each connection. Registered users receive a statically assigned IPv6 address registered on their DNS servers (both forward and reverse zones). Registered users can also request a /56 address prefix delegation, which gives you 8-bits of subnet addressing (255 subnets of /64 networks). I wanted to investigate dual-stack routing, so I asked for and received a /56 address prefix delegation.
After registering with Gogo6 and Freenet6, getting the gogoc service took a bit of tweaking. In my /etc/gogoc/gogoc.conf file I had to enter my userid and passwd information, and set the following parameters:
server=montreal.freenet6.net # those in Europe can use amsterdam
always_use_same_server=yes
auth_method=digest-md5 # not the best, but better than nothing
host_type=router # I wanted my sub-nets
prefixlen=56 # can be 128, 64 or 56
if_prefix=eth0 # interface for router advertisements
tunnel_mode=v6anyv4
In the /var/lib/gogoc/tsp-last-server.txt file I pre-loaded the single entry "montreal.freenet6.net", since one weakness of Gogo6/Freenet6 is that while they have several server locations, your registration is only recognized in the one you register for, in my case Montreal.
Once this was done, it worked as advertised and I had the basis for my experimental dual-stack network. Here is a simplified diagram of one of my experimental networks:
I am not using my real IPv6 addresses on the diagram, the ones labeled here are similar to RFC1918 addresses for IPv4. The "File Server" here is a generic stand-in for any of several servers providing various services, such as: XMPP, Active Directory services, NT4 domain services, NFS file server, IPA Directory server, LDAP server etc. R1 and R2 are Linux Mint servers running Quagga, BIND, ISC DHCP and supporting services. All hosts on the net are virtual machines built with VirtualBox running on a Linux Mint v17 host with 3 NICs.
Gogo6/Freenet6 works very well. I don't run IPv6 full time, I turn it on and off with the "service" command as needed. One thing to keep in mind is that IPv6 is tunneled right through my firewall, so I have to make sure that any services are secured. All ssh servers are address restricted via /etc/hosts.allow and password authentication is turned off (authorized keys only) for instance.
Advantages of Gogo6/Freenet6
I was able to run IPv6 from within my NATed home network where I had great flexibility in routing. The delegation of a /56 IPv6 prefix meant that I could create an elaborate dual-stack intranet as an excellent learning platform. The ability to have an anonymous tunnel (for IPv6) can be a plus for some users. I run a second registered host tunnel on my laptop, and since it is a static address with proper DNS entries I can log into my home IPv6 net even with address restrictions.
Problems with Gogo6/Freenet6
Since my home firewall/router doesn't have the "gogoc" client, I can't run Gogo6/Freenet6 on my Netgear/Tomato box.
Twice I have "lost" my /56 prefix assignment and a different one was assigned. There is very little tech support and I never found out exactly why this happens. Both times I had to re-number my networks and update my local DNS records. My tunnel address was never lost, only the /56 prefix.
Just recently the Montreal Gogo6/Freenet6 server went down completely (Amsterdam stayed up) for a period of nearly two weeks. I received no announcement about this but on their community forum I found out that it was being worked on and when it came back up, all was well. Apparently this is a volunteer-run service and while I am thankful for it, I would not trust a production network to this service.
Hurricane Electric
When Gogo6/Freenet6 was "down" for two weeks and I was unsure if or when it would be back up, I looked into Hurricane Electric briefly. I was able to get my Netgear/Tomato firewall router working with an IPv6 tunnel once I registered at HE. I received a /64 delegation and an optional /48 prefix. I had planned to re-number my virtual network (again) and use HE as my tunnel broker.
First the good news. I was able to get the tunnel and the /64 prefix running on my home network. The bad news is that the Netgear/Tomato router has no provision for static IPv6 routes (other than default) nor any IPv6 routing services (OSPFv3 for instance), so it meant that I couldn't run my virtual IPv6 intranet with the delegated /48 prefix, or rather I could, but they couldn't be connected to the outside world. This is not a problem with HE, but a limitation of Tomato.
The further bad news (for me) is that I don't have a statically assigned public IPv4 address, so once I had to power-cycle my firewall/router (we have a lot of power outages here in America's paradise), I lost my tunnel endpoint address and HE tunnel stopped working. Manually editing my tunnel settings at HE should have fixed it, but I had trouble there too. I might have been able to work through these problems, but since I would still not be able to run my virtual net the way I wanted, I didn't try very hard. About that time Gogo6/Freenet6 came back on-line and I switched back.
Advantages of Hurricane Electric
The HE 6-in-4 tunnel is more generic and widely supported in commodity home firewalls than gogoc. If one had a statically assigned public IPv4 address from one's ISP, I think HE would be a better choice for most home users looking for solid IPv6 connectivity than Gogo6/Freenet6. Most home users wouldn't need elaborate routing, the /64 prefix would cover even the largest single home LAN.
Disadvantages of Hurricane Electric
HE really works best if you have a static public IPv4 endpoint for your tunnel. I didn't use HE long enough really wring it out, and the problems I had were mostly due to my own environment (bad local power, limited router functionality) rather than with HE.
Conclusions
For my purposes (self education and playing with technology) Gogo6/Freenet6 has worked pretty well, even with prolonged outages and changing prefix delegations. It is likely the only tunnel broker I can use without upgrading some of my home network equipment (pfSense router for instance) and paying my ISP for a static public IPv4 address. If only my ISP would just upgrade to support native IPv6 ...
With a better firewall/router and a static tunnel endpoint, HE would be a good choice and I think it may be more reliable and better supported than Gogo6/Freenet6. HE would be my first choice for a production network if those two criteria were met and I still needed the services of a tunnel broker.
Update 14 April 2016
It appears that Gogo6/Freenet6 is closing down. I received the following notice:
"Hello. After 6 years of IPv6 goodness, gogoNET is closing down. With over 100,000 registered members I’d like to think that we made a difference in helping the world transition to IPv6.
The Freenet6 service will also stop accepting new users and it is unknown how long it will continue to operate for existing users. If you rely on one of our free tunnels or address blocks you should start looking for alternatives.
The company gogo6 stopped operating almost two years ago. The gogoNET community and FN6 tunnel broker service lost money for years before that but I kept it running because it helped people, not only to get IPv6 but for some people it provided access to the uncensored Internet from countries that try to restrict it.
gogoNET will go dark on April 23, 2016. How long Freenet6 will continue to operate is uncertain since its IPv6 block from ARIN has not been renewed.
With the transition to the Internet of IPv6 well on its way I have shifted my focus to help with the transition to the Internet of Things with my new site, http://www.iot-inc.com. Hope to see you there, Bruce"
Links
Gogo6/Freenet6 http://www.gogo6.com/
Hurricane Electric http://he.net/
Saturday, April 4, 2015
Directory and File Service for All: ClearOS & SME
In a previous post I discussed Zentyal and FreeIPA as two options for FOSS ID management. Those servers provided directory service via LDAP and security services via Kerberos. In the case of Zentyal it provided a useful sub-set of Active Directory services that could (in some cases) replace a Windows small business server. The two servers under discussion today are a bit different, but supply some of the same features.
Both SME Server and ClearOS provide central ID management and CIFS file service, but without Kerberos or Active Directory compatibility. Both provide and easy to use web-based management interface, no need for Windows tools for managing your server.
The Koozali SME (Small and Medium Enterprise) Server provides an easily set-up all-purpose network service appliance for small networks. It is based on CentOS (currently v6.6). In addition to ID management and CIFS file service, SME also provides many other services, whether you want them or not. At installation there are 3 options for the role that SME may play:
1. Server and gateway
2. Private server and gateway
3. Server only
I chose the "Server only" option, since I already had DNS, DHCP and routing implemented on other net components. Beyond the directory service (via OpenLDAP) and CIFS file service (via Samba v3.6.x) that I wanted, I also had an email server (SMTP/IMAP/POP) that I did not want. The trade off here is that SME is very easy to set up, but it is not very modular nor very flexible. Further, Samba does not use LDAP for it's credential store. By default, the server does not use LDAP for it's own authentication, although that can be changed by running a script apparently. Password synchronization between LDAP and Samba happens externally. So this means that there are 3 separate credential stores on SME: /etc/passwd,shadow, LDAP and Samba.
For my purposes I wanted a central directory service for authentication and a CIFS for personal and shared directories for 3 platforms: Linux, MacOS, and Windows. SME implements a Windows NT4-style domain through Samba version 3.6.x and provides the directory service via OpenLDAP version 2.4.x over SSL. SME gave me what I needed, but I was rather disappointed that it included email services that I did not need or ask for. I did not try out the gateway services: Firewall, DNS, DHCP and web content filtering.
Pros
Cons
ClearOS has some similarities with SME Server. Both are based on CentOS (currently v6.6). Both use OpenLDAP and Samba v3.6.x for directory and CIFS file services respectively. Both can provide gateway services as well as email services in addition to the directory and file services. Both implement Windows NT4-style domains for CIFS file service. There are some significant differences as well.
ClearOS is much more modular than SME, you add only the services that you need. Authentication is centralized in LDAP for all services. ClearOS can provide commercial services and subscriptions to extend it's capabilities.
My requirements were the same as those for SME server: Directory and file services for Linux, MacOS and Windows. In addition I did try some of the gateway services with ClearOS, but they won't be discussed here.
The various services come in packages that you can add individually. Once added, I could not find a means to "un-add" them through the management interface. Once the package is installed, you are stuck with them, so choose carefully. Here is a screen-shot of the modules I installed (including the gateway services):
I tested the "Community" edition of ClearOS. Some of the available packages are only available in the commercial or "Professional" edition. All of the modules I tried out were free of charge. One of the commercial (not free) additions available in the ClearOS "Marketplace" that I am interested in is the "Google Apps Synchronization" service. At present I don't have a Google Apps domain, but even if I did it would require the "Professional" version of ClearOS. The prices for the commercial services and subscriptions are generally rather reasonably priced. The "Community" vs. "Professional" dichotomy is no different than many "freemium" offers for software on the net. I would have preferred a straight commercial support option rather than splitting the server into two distributions. The Community edition is quite adequate for many purposes. There were 79 free Marketplace applications available for the Community edition.
Pros
Cons
The use of Windows NT4-style domain may seem a step backward from Active Directory or even FreeIPA, but it has it's uses. The Samba implementation of NT4-style domains does not require changes to existing DNS domains (as both AD and FreeIPA do), since they use a separate naming service (WINS). This means they can be more easily integrated into existing networks without the need to create sub-domains (as I have done in the past). The CIFS distributed file system may not be the best available, but it is the most widely supported and the NT4 domain makes such file systems easier to share in a diverse network supporting all three major platforms (Linux, MacOS and Windows).
Of the two systems discussed here, I prefer ClearOS to SME. Both are usable and useful, but the modularity and extensibility of ClearOS, along with the unified LDAP authentication tip the balance for me. The commercial nature of ClearOS will dissuade many users. The model I have in mind when evaluating these systems is a small K-12 school. Schools have needs that many small businesses and home networks do not have. The use of Chromebooks in schools is widespread and on the rise, so integration of the campus network with a Google Apps domain that can be used to manage Chromebooks would be a plus; the availability of a packaged GADS application that would allow managing accounts and passwords in one place is a real win for ClearOS, even if it costs $125/year through their "Marketplace".
SME Server: http://wiki.contribs.org/Main_Page
ClearOS: http://www.clearfoundation.com/Software/overview.html
Notes on LDAP client authentication:
https://drive.google.com/open?id=0B6yzbC9y4l-CMkVtejRKaUEzX0k
Both SME Server and ClearOS provide central ID management and CIFS file service, but without Kerberos or Active Directory compatibility. Both provide and easy to use web-based management interface, no need for Windows tools for managing your server.
SME Server
The Koozali SME (Small and Medium Enterprise) Server provides an easily set-up all-purpose network service appliance for small networks. It is based on CentOS (currently v6.6). In addition to ID management and CIFS file service, SME also provides many other services, whether you want them or not. At installation there are 3 options for the role that SME may play:
1. Server and gateway
2. Private server and gateway
3. Server only
I chose the "Server only" option, since I already had DNS, DHCP and routing implemented on other net components. Beyond the directory service (via OpenLDAP) and CIFS file service (via Samba v3.6.x) that I wanted, I also had an email server (SMTP/IMAP/POP) that I did not want. The trade off here is that SME is very easy to set up, but it is not very modular nor very flexible. Further, Samba does not use LDAP for it's credential store. By default, the server does not use LDAP for it's own authentication, although that can be changed by running a script apparently. Password synchronization between LDAP and Samba happens externally. So this means that there are 3 separate credential stores on SME: /etc/passwd,shadow, LDAP and Samba.
For my purposes I wanted a central directory service for authentication and a CIFS for personal and shared directories for 3 platforms: Linux, MacOS, and Windows. SME implements a Windows NT4-style domain through Samba version 3.6.x and provides the directory service via OpenLDAP version 2.4.x over SSL. SME gave me what I needed, but I was rather disappointed that it included email services that I did not need or ask for. I did not try out the gateway services: Firewall, DNS, DHCP and web content filtering.
Pros
- Provides LDAP over SSL for authentication and general directory service
- Provides Windows NT4-style domain for CIFS file service
- All services are open source and free of charge
- Easy to set up and manage
Cons
- No IPv6 support
- Provides Email whether you need/want it or not
- Divides authentication into 3 separate realms
ClearOS
ClearOS has some similarities with SME Server. Both are based on CentOS (currently v6.6). Both use OpenLDAP and Samba v3.6.x for directory and CIFS file services respectively. Both can provide gateway services as well as email services in addition to the directory and file services. Both implement Windows NT4-style domains for CIFS file service. There are some significant differences as well.
ClearOS is much more modular than SME, you add only the services that you need. Authentication is centralized in LDAP for all services. ClearOS can provide commercial services and subscriptions to extend it's capabilities.
My requirements were the same as those for SME server: Directory and file services for Linux, MacOS and Windows. In addition I did try some of the gateway services with ClearOS, but they won't be discussed here.
The various services come in packages that you can add individually. Once added, I could not find a means to "un-add" them through the management interface. Once the package is installed, you are stuck with them, so choose carefully. Here is a screen-shot of the modules I installed (including the gateway services):
I tested the "Community" edition of ClearOS. Some of the available packages are only available in the commercial or "Professional" edition. All of the modules I tried out were free of charge. One of the commercial (not free) additions available in the ClearOS "Marketplace" that I am interested in is the "Google Apps Synchronization" service. At present I don't have a Google Apps domain, but even if I did it would require the "Professional" version of ClearOS. The prices for the commercial services and subscriptions are generally rather reasonably priced. The "Community" vs. "Professional" dichotomy is no different than many "freemium" offers for software on the net. I would have preferred a straight commercial support option rather than splitting the server into two distributions. The Community edition is quite adequate for many purposes. There were 79 free Marketplace applications available for the Community edition.
Pros
- Provides LDAP over SSL for authentication and general directory service
- Provides Windows NT4-style domain for CIFS file service
- Easy to set up and manage
- Flexible modular architecture
- Extensible via add-on "Marketplace" applications
Cons
- "Professional" version needed in some use cases
- Marketplace applications can be added but not removed
- Limited IPv6 support (optional and set up manually; not all services supported)
Conclusions
The use of Windows NT4-style domain may seem a step backward from Active Directory or even FreeIPA, but it has it's uses. The Samba implementation of NT4-style domains does not require changes to existing DNS domains (as both AD and FreeIPA do), since they use a separate naming service (WINS). This means they can be more easily integrated into existing networks without the need to create sub-domains (as I have done in the past). The CIFS distributed file system may not be the best available, but it is the most widely supported and the NT4 domain makes such file systems easier to share in a diverse network supporting all three major platforms (Linux, MacOS and Windows).
Of the two systems discussed here, I prefer ClearOS to SME. Both are usable and useful, but the modularity and extensibility of ClearOS, along with the unified LDAP authentication tip the balance for me. The commercial nature of ClearOS will dissuade many users. The model I have in mind when evaluating these systems is a small K-12 school. Schools have needs that many small businesses and home networks do not have. The use of Chromebooks in schools is widespread and on the rise, so integration of the campus network with a Google Apps domain that can be used to manage Chromebooks would be a plus; the availability of a packaged GADS application that would allow managing accounts and passwords in one place is a real win for ClearOS, even if it costs $125/year through their "Marketplace".
Links
SME Server: http://wiki.contribs.org/Main_Page
ClearOS: http://www.clearfoundation.com/Software/overview.html
Notes on LDAP client authentication:
https://drive.google.com/open?id=0B6yzbC9y4l-CMkVtejRKaUEzX0k
Subscribe to:
Posts (Atom)
